MS Topcoater Elite Powder Spray System

High-quality coating with an easy-to-use, multifunctional powder cart system!

The MS Topcoater Elite Cart is a small stand-alone coating unit. The cart consists of a topcoat M5 manual powder gun, a Topcase controller and an elite suction system. These items are all mounted on a mobile cart for easy transportation.

In the base of the cart there is a vibrator, which helps mobilize the powder into suspension allowing easier transport to the applicator.

System Includes:

Single System Cart

M5 Manual Powder Gun

MS Topcase Controller

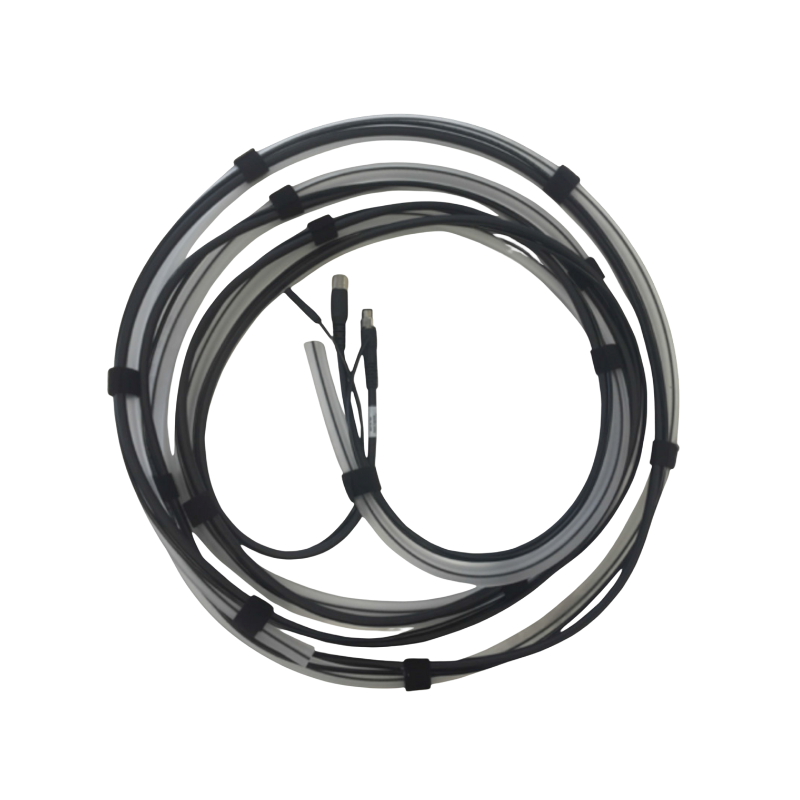

Your choice of Powder Hose length:

6 Meters

10 Meters

16 Meters

20 Meters



Specifications

ms TOPCOATER® ELITE SERIES 5

Cart Dimensions

Weight	105 lbs (47.62 Kg)
Depth	29 Inches (740 mm)
Width	25 Inches (640 mm)
Height	46 Inches (1160 mm)

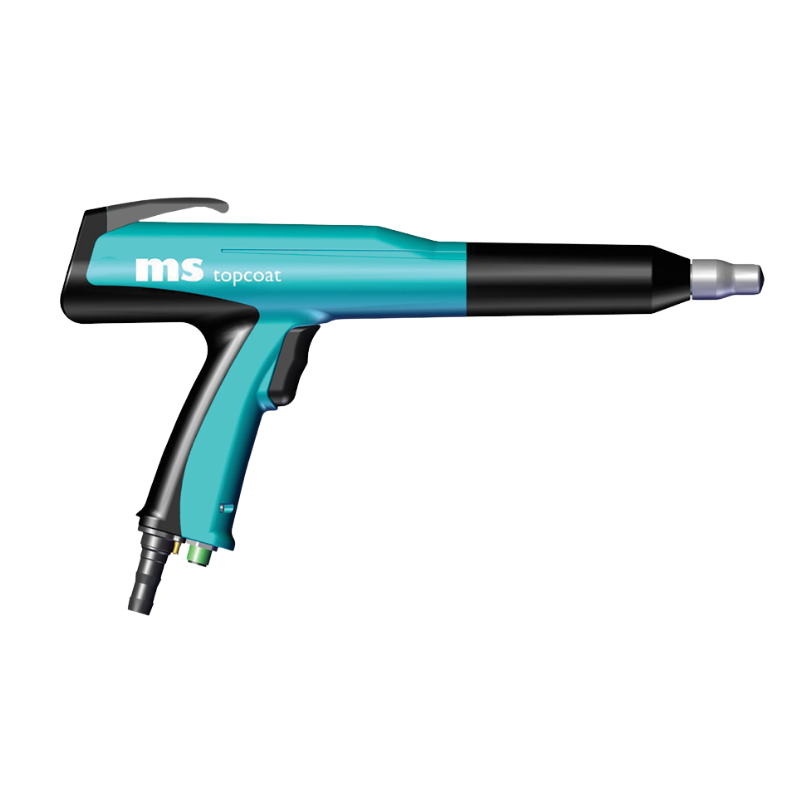

TOPCOAT M5 POWDER GUN SPECS:

M5 Gun Dimensions

Weight	15.1 oz. (437 g) without cable hose assembly
Length	13.7 Inches (350 mm) with flat spray nozzle



M5 Gun Electrical Data

Frequency	40 kHz
Output Voltage	100kV
Output Current	Regulated by 0-110
Polarity	Negative
Protection	IP 64
Power Output	450 gm/minute maximum



Pneumatic Data

Input Air Pressure (Main Supply)	87 psi (6 bar max)
Powder Flow Rate	Variable up to 450 g/min

MS Topcase Controller:

Electrical Data

Main	100-250 VAC
Frequency	50-60 kHz
Input Power	70 W (550 W with vibrator on)
External Voltage to Applicator	max. 10 veff
External Current to Applicator	max 1.4 A
External Frequency to Applicator	40 kHz
Output to Vibrator	100-250 VAC / max 70w
Fuse	2.5A



Pneumatic Data

Input Air Pressure (Main Supply)

90 psi (6 bar max)
